Graphtec CE8000-130 Wide Format Vinyl Cutter with Stand (1300mm/50")

£3,424.16

Dimensions

1644mm x 811mm x 1076mm (with stand)
Add to WishlistCompare
Ask a Question
Dimensions: 1644mm x 811mm x 1076mm (with stand)
SKU: CE8000-130
Fullfilled By: Graphtec
Availability : Usually available within 2 days from date of order Usually available within 2 days from date of order Out of stock
Tags: Graphtec Graphtec plotter
Product Brochure:
Description

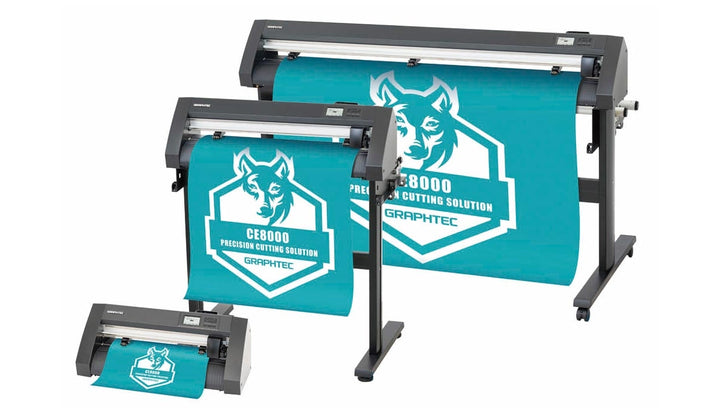

Graphtec CE8000-130 Cutting Plotter

The Graphtec CE8000-130 is a 50-inch (130 cm) professional cutting plotter designed for high-speed precision cutting and long-length tracking. As part of the CE8000 Series, it combines performance, reliability, and innovation—ideal for sign makers, print-and-cut applications, and industrial users. Featuring the advanced ARMS 8.0 system, high cutting force, and Ethernet connectivity, the CE8000-130 delivers superior productivity and accurate results across a wide range of media.

Key Features
  • Cutting Width: 130 cm (50")
  • Maximum Cutting Speed: 1000 mm/s
  • Cutting Force: Max 4.41 N (450 gf)
  • Advanced ARMS 8.0 for high-precision print & cut alignment
  • Data Link Function (Barcode Cutting Support)
  • USB and Ethernet connectivity
  • Digital Servo Drive System
  • Media tracking performance up to 5 m
  • Cross-cutter for automatic sheet separation
  • 3-Year Warranty
Included Software
  • Graphtec Pro Studio (Windows)
  • Graphtec Studio 2 (Mac)
  • Cutting Master 5 (Adobe Illustrator & CorelDRAW Integration)
What’s Included
  • Cutting Blade: Graphtec 0.9 mm Supersteel (CB09UB)
  • Blade Holder: Graphtec 0.9 mm (PHP-33-CB09N-HS)
  • Media Basket (Included)
  • Machine Stand (Included)
  • USB Connection Cable, Power Cable, and User Manual
Applications
  • Vinyl Lettering & Signage Production
  • Print & Cut Labels, Stickers, and Decals
  • Heat Transfer Graphics for Apparel
  • Reflective and Fluorescent Film Cutting
  • Vehicle Graphics & Large Format Decals
  • Templates, Stencils, and Pattern Cutting
  • Packaging Prototyping
Machine Specifications
  • Configuration & Drive: Grit Rolling Type — Digital Servo Drive
  • Display: Backlit LCD (240 × 128 Dots)
  • Mountable Tools: 1 Tool (Cutting or Drawing)
  • Maximum Cutting Force: 4.41 N (450 gf)
  • Maximum Cutting Speed: 1000 mm/s (at 45° Direction)
  • Mechanical Resolution: 0.005 mm
  • Programmable Resolution: GP-GL: 0.1 / 0.05 / 0.025 / 0.01 mm; HP-GL: 0.025 mm
  • Repeatability: Max. 0.1 mm (Up to 2 m)
  • Minimum Character Size: Approx. 3–5 mm Alphanumeric (Depending on Font & Media)
  • Media Tracking Distance: Up to 5 m (Standard Conditions)
  • Guaranteed Accuracy Area: 1220 mm × 5 m
  • Maximum Cutting Area: 1300 mm × Long Lengths
  • Mountable Media Width: 50 mm – 1372 mm
  • Mountable Roll Diameter: Up to 150 mm
  • Mountable Roll Mass: Up to 10 kg
  • Number of Push Rollers: 3 Rollers
  • Media Types: Self-Adhesive Marking Film (≤0.25 mm), PVC, Polyester, Fluorescent & Reflective Film
  • Perforation Cutting: Supported
  • Interface: USB 2.0 (Full Speed), Ethernet (10BASE-T/100BASE-TX)
  • Buffer Memory: 2 MB
  • Command Sets: GP-GL / HP-GL (Auto-Detect)
  • Software Compatibility: Graphtec Studio, Graphtec Pro Studio, Cutting Master 5
  • Power: 100–240 V AC, 50/60 Hz — Max. 120 W
  • Operating Environment: 10–35 °C, 35–75% RH (Non-Condensing)
  • Guaranteed Accuracy Environment: 16–32 °C, 35–70% RH (Non-Condensing)
  • Dimensions (W × D × H): 1560 × 865 × 1046 mm (with Stand)
  • Weight: Approx. 38 kg (with Stand)
  • Safety & Compliance: CE Mark, UL/cUL, VCCI Class A, FCC Class A
Delivery Information

Delivery Information:

  • Delivery Cost: Included
  • Set up Support: Self installation
