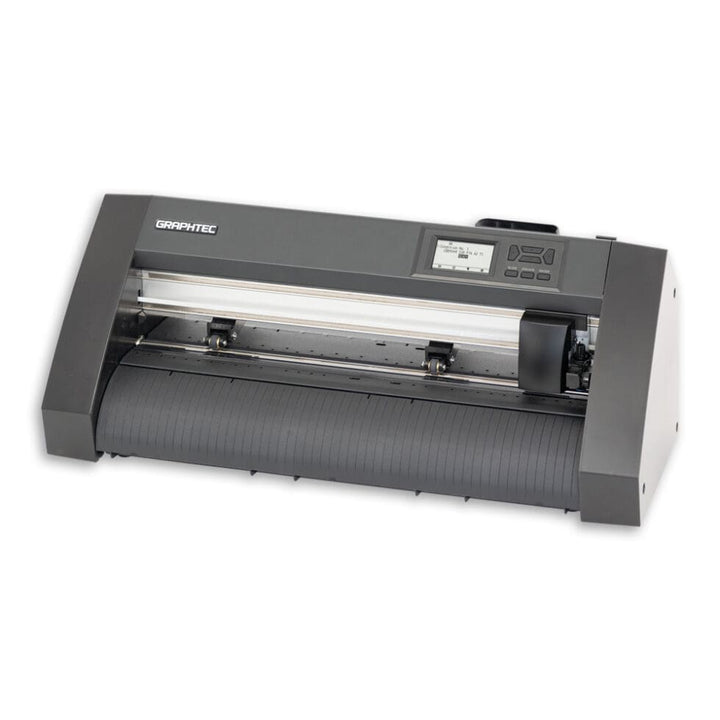

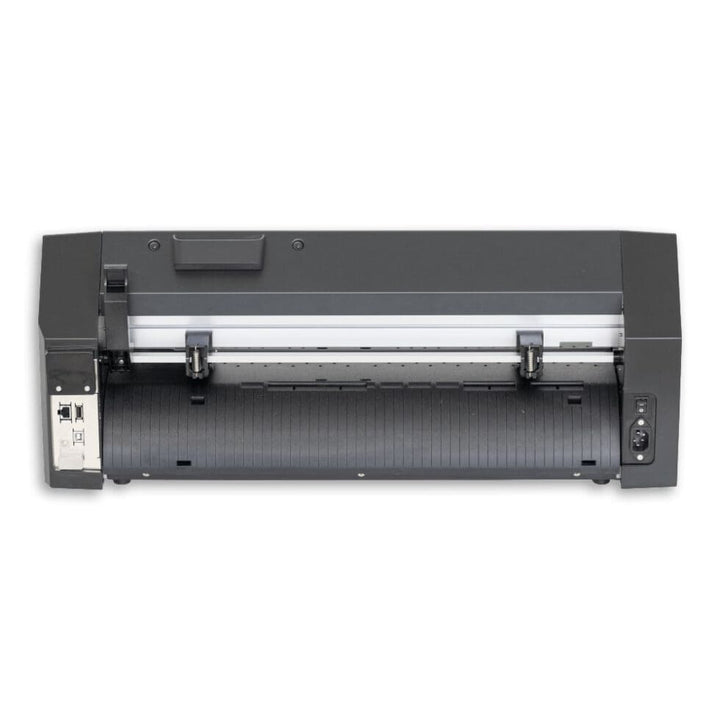

Graphtec CE8000-40 Cutting Plotter
The Graphtec CE8000-40 is part of the CE Series, offering a robust and reliable cutting solution for small workspaces. Perfect for sticker and decal creation, window signage, HTV apparel, and stencil materials, it combines professional specification with cost-effective performance.
| Key Features |
- Compact design for small workspaces
- Maximum cutting speed: 900 mm/s (at 45° direction)
- Maximum cutting force: 450 g (4.41 N)
- ARMS 8.0 Optical Eye for accurate print & cut applications
- Reliable long-length media tracking up to 2 m
- Rugged “workhorse” design
- Large graphic LCD control panel
- Normal Mode allows 8 programmable cutting conditions
- Supports perforation cutting and multiple media types
- 2-year manufacturer warranty
|
| Included Software |
- Graphtec Studio 2 (Windows)
- Graphtec Studio (Mac)
- Cutting Master 5 (Adobe Illustrator & CorelDRAW integration)
- Windows Driver
|
| What’s Included |
- Cutting Blade: Graphtec 0.9 mm Supersteel CB09UB-P
- Blade Holder: Graphtec 0.9 mm PHP-33-CB09N-HS
- Loupe: PM-CT-001 for checking blade length & condition
- Carrier Sheet: A3 size
- Roll Media Tray
|
| Applications |
- Sticker & decal creation
- Window signage & tint films
- Heat transfer apparel
- Stencil and card cutting
|
| Machine Specifications |
- Configuration: Grit rolling type
- Drive method: Digital servo drive system
- Interface: USB 2.0 offline / USB 2.0 cable, Wireless LAN
- Media tracking distance: Up to 2 m
- Minimum character size: Approx. 5 mm alphanumeric
- Repeatability: Max 0.1 mm in plot up to 2 m
- Media type: Self-adhesive marking film up to 0.25 mm thick
- Buffer memory: 2MB
- Command sets: GP-GL / HP-GL™
- Display: Touch panel (240 dot x 128 dot)
|
| Cutting Specifications |
- Cutting Width: 375 mm (14.8")
- Accuracy Guaranteed Area: 355 mm x 2 m
- Media Width Range: 50 mm - 484 mm (19")
- Maximum Roll Weight: 5 kg
- Cutting Speed: 900 mm/s (at 45°)
- Cutting Force: 4.41 N (450 gf)
- Acceleration: 21.2 m/s² (45°)
|
| Technical Details |
- Cutter Type: Roll feed
- Drive System: Digital servo
- Push Rollers: 2
- Media Types: Marking film up to 0.25 mm thickness (PVC/fluorescent/reflective)
- Mechanical Step Size: 0.005 mm
|
| Physical & Environmental |
- Dimensions: 677 mm x 289 mm x 266 mm (W×D×H)
- Weight: 11 kg
- Power: AC100-120V, AC200-240V, 50/60Hz, Max 140W
- Operating Environment: 10-35°C, 35-75% RH
- Standards: PSE, UL/cUL, CE marking, VCCI Class A, FCC Class A
|
