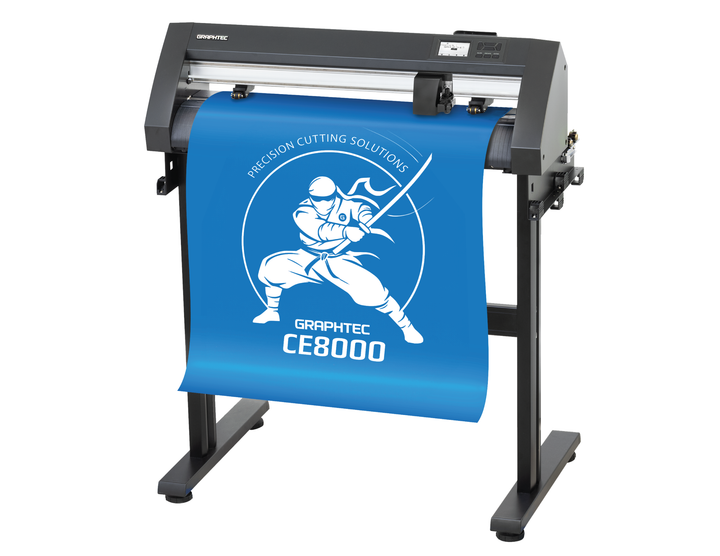

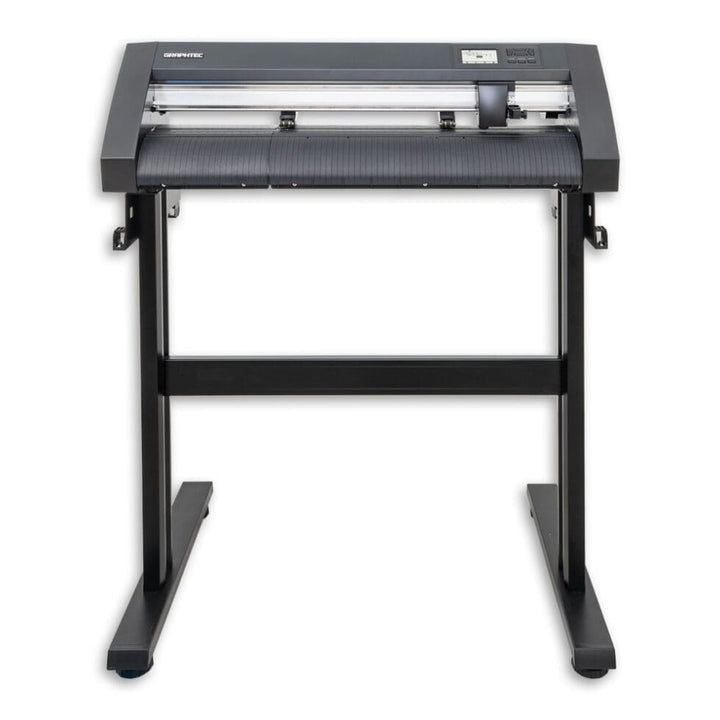

Graphtec CE8000-60 Cutting Plotter
The Graphtec CE8000-60 is a professional-grade 24-inch (60 cm) cutting plotter from Graphtec’s CE8000 series, designed for precision cutting and exceptional speed. It’s the perfect solution for sign makers, print-and-cut workflows, and vinyl cutting professionals who demand reliability and efficiency in a compact format. With advanced features like ARMS 8.0 (Auto Registration Mark Sensing), Ethernet connectivity, and improved tracking performance, the CE8000-60 provides superior productivity and accuracy for medium-format applications.
| Key Features |
- Cutting Width: 60 cm (24")
- Maximum Cutting Speed: 1000 mm/s
- Cutting Force: Max 4.41 N (450 gf)
- Advanced ARMS 8.0 for Accurate Print & Cut Alignment
- Data Link Function for Barcode Cutting
- Ethernet and USB Connectivity
- High-Precision Servo Motor Drive
- Improved Media Tracking up to 5 m
- Cross-Cutter Function for Sheet-Off Jobs
- 3-Year Warranty
|
| Included Software |
- Graphtec Pro Studio (Windows)
- Graphtec Studio 2 (Mac)
- Cutting Master 5 (Adobe Illustrator & CorelDRAW Integration)
|
| What’s Included |
- Cutting Blade: Graphtec 0.9 mm Supersteel (CB09UB)
- Blade Holder: Graphtec 0.9 mm (PHP-33-CB09N-HS)
- Media Basket (Optional)
- Machine Stand (Optional)
- USB Connection Cable, Power Cable, and User Manual
|
| Applications |
- Vinyl Lettering & Signage
- Print & Cut Stickers and Labels
- Heat Transfer Graphics for Apparel
- Reflective and Fluorescent Film Cutting
- Window Graphics and Decals
- Template and Stencil Cutting
- Hobby Craft and Light Industrial Applications
|
| Machine Specifications |
-
Configuration & Drive: Grit Rolling Type — Digital Servo Drive
-
Graphic Display: Backlit LCD (240 × 128 Dots)
-
Mountable Tools: 1 Tool (Cutting or Drawing)
-
Maximum Cutting Force: 4.41 N (450 gf)
-
Maximum Cutting Speed: 1000 mm/s (at 45° Direction)
-
Mechanical Resolution: 0.005 mm
-
Programmable Resolution: GP-GL: 0.1 / 0.05 / 0.025 / 0.01 mm; HP-GL: 0.025 mm
-
Repeatability: Max. 0.1 mm (Up to 2 m)
-
Minimum Character Size: Approx. 3–5 mm Alphanumeric (Depending on Font & Media)
-
Media Tracking Distance: Up to 5 m (Standard Conditions)
-
Guaranteed Accuracy Area: 603 mm × 5 m
-
Maximum Cutting Area: 712 mm × Long Lengths
-
Mountable Media Width: 50 mm – 770 mm
-
Mountable Roll Diameter: Up to 150 mm
-
Mountable Roll Mass: Up to 6 kg
-
Number of Push Rollers: 3 Rollers
-
Media Types: Self-Adhesive Marking Film (≤0.25 mm), PVC, Polyester, Fluorescent & Reflective Film
-
Perforation Cutting: Supported
-
Interface: USB 2.0 (Full Speed), Ethernet (10BASE-T/100BASE-TX)
-
Buffer Memory: 2 MB
-
Command Sets: GP-GL / HP-GL (Auto-Detect)
-
Software Compatibility: Graphtec Studio, Graphtec Pro Studio, Cutting Master 5
-
Power: 100–240 V AC, 50/60 Hz — Max. 90 W
-
Operating Environment: 10–35 °C, 35–75% RH (Non-Condensing)
-
Guaranteed Accuracy Environment: 16–32 °C, 35–70% RH (Non-Condensing)
-
Dimensions (W × D × H): 940 × 865 × 1046 mm (with Stand)
-
Weight: Approx. 33 kg (with Stand)
-
Safety & Compliance: CE Mark, UL/cUL, VCCI Class A, FCC Class A
|
