Graphtec FC9000-160 Professional Cutting Plotter (1600mm/64")

£6,862.62

Dimensions

2224 x 1151 x 1232mm
Add to WishlistCompare
Ask a Question
Dimensions: 2224 x 1151 x 1232mm
SKU: FC9000-160
Fullfilled By: Graphtec
Availability : Usually available within 2 days from date of order Usually available within 2 days from date of order Out of stock
Tags: Graphtec Graphtec plotter
Product Brochure:
Description

Graphtec FC9000-160 Cutting Plotter

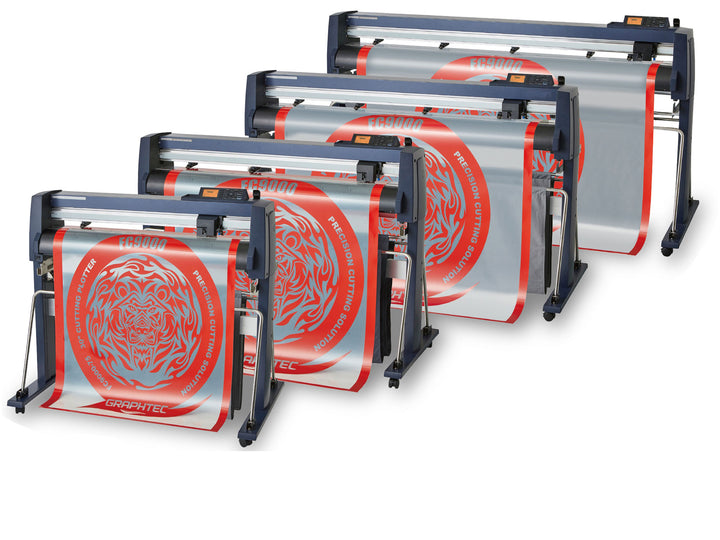

The Graphtec FC9000-160 is the top-tier model in Graphtec’s flagship FC9000 series. Built for maximum productivity and precision, this 160 cm wide-format cutting plotter delivers unmatched performance for high-demand print finishing, signage, vehicle wrapping, and industrial applications. Designed for long-length tracking and high-speed operation, it’s the perfect choice for professionals requiring large-scale, accurate, and efficient cutting capabilities.

Key Features
  • Width Available: 160 cm
  • Maximum Cutting Speed: 1485 mm/s
  • Cutting Force: Max 5.88 N (600 gf)
  • Networking Capabilities (Ethernet Connectivity)
  • Data Link Function (Barcode Reader) for Continuous Cutting
  • Built-in Cross-Cutter Function for Sheet Off
  • Servo-Driven Grit Roller Type
  • Automatic Take-Up Roller Included for Long Jobs
  • Buffer Memory: 2 MB
  • 3-Year Warranty
Included Software
  • Graphtec Studio 2 (Windows & Mac Versions)
  • Cutting Master 4 (Adobe Illustrator & CorelDRAW Integration)
  • Graphtec Pro Studio (Windows)
What’s Included
  • Cutting Blade: Graphtec 0.9 mm Supersteel (CB09UB)
  • Blade Holder: Graphtec 0.9 mm (PHP-33-CB09N-HS)
  • Media Catch Baskets (Front & Rear)
  • Matching Machine Stand with Media Rollers
  • Rear Mounted Media Stocker
  • Automatic Take-Up Roller for Continuous Cutting
  • USB Connection Cable (2.9 m), Power Cable, DVD-ROM, User Manual
Applications
  • Large Format Print & Cut Applications
  • Sticker & Decal Production
  • Window Signage & Tint Film
  • Road & Reflective Signage
  • Heat Transfer Apparel
  • Paint Protection Film (PPF) & Vehicle Wraps
  • Magnetic Media & Sandblast Rubber Stencil
  • Industrial and Graphic Design Production
Machine Specifications
  • Configuration & Drive: Grit Rolling Type — Digital Servo Drive
  • Graphic Display: Graphic LCD with Backlight (240 × 128 Dots)
  • Mountable Tools: 1 Tool (Up to 2 Tools with Optional Pen Kit)
  • Maximum Cutting Force: 5.88 N (600 gf)
  • Maximum Cutting Speed: 1485 mm/s (at 45° Direction)
  • Axial Acceleration: Up to 39.2 m/s² (at 45° Direction)
  • Mechanical Resolution: 0.005 mm
  • Programmable Resolution: GP-GL: 0.1 / 0.05 / 0.025 / 0.01 mm; HP-GL: 0.025 mm
  • Repeatability: Max. 0.1 mm in Plot up to 2 m (Excluding Media Expansion/Contraction)
  • Minimum Character Size: Approx. 3–5 mm Alphanumeric (Depending on Font & Media)
  • Media Tracking Distance: 15 m Standard / 20 m with Take-Up Spool
  • Guaranteed Accuracy Area: 1607 mm × 10 m
  • Maximum Cutting Area: 1626 mm × Long Lengths
  • Mountable Media Width: Min. 50 mm — Max. 1850 mm
  • Mountable Roll Diameter: 76–200 mm (160 mm with Optional Paper Flange OPH-A21)
  • Mountable Roll Mass: 12 kg
  • Number of Push Rollers: 4 Rollers
  • Media Types: Self-Adhesive Marking Film (≤0.25 mm), PVC Film, Fluorescent, Reflective, Polyester Film (Conditional), High-Intensity Reflective Film
  • Perforation, Die & Kiss Cutting: Supported (Force-Controlled)
  • Interface: USB 2.0 (Full Speed), Ethernet 10BASE-T/100BASE-TX
  • Buffer Memory: 2 MB
  • Command Sets: GP-GL / HP-GL (Auto-Detect)
  • Software Compatibility: Graphtec Pro Studio (Windows), Graphtec Studio (Mac), Cutting Master 4
  • Power: 100–240 V AC, 50/60 Hz — Max. 120 W
  • Operating Environment: 10–35 °C, 35–75% RH (Non-Condensing)
  • Guaranteed Accuracy Environment: 16–32 °C, 35–70% RH (Non-Condensing)
  • Dimensions (W × D × H): 2224 × 1151 × 1232 mm
  • Weight: Approx. 65 kg
  • Safety & Compliance: PSE, UL/cUL, CE Mark, VCCI Class A, FCC Class A
Delivery Information

  • Delivery Cost: Included (Kerbside)
  •  ⚠️ Forklift required for offload
