Graphtec FC9000-75 Professional Cutting Plotter (750mm/30")

£3,647.11

Dimensions

1360 x 1151 x 1232mm
Dimensions: 1360 x 1151 x 1232mm
SKU: FC9000-75
Availability : Usually available within 2 days from date of order Usually available within 2 days from date of order Out of stock
Tags: Graphtec
Description

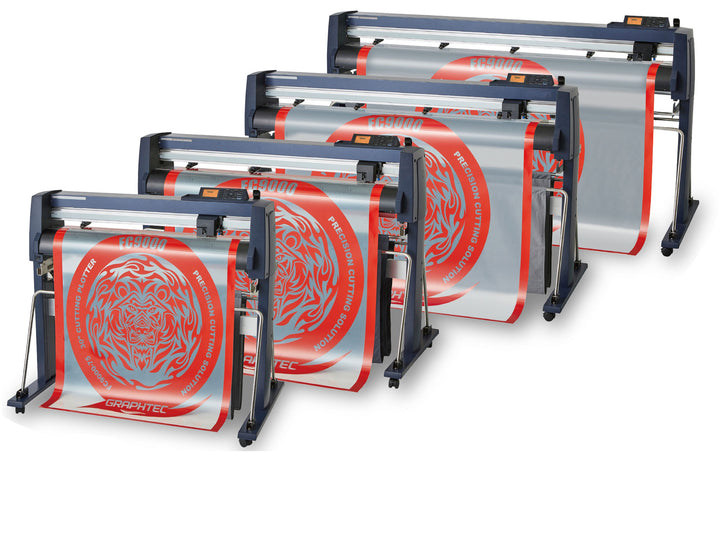

The Graphtec FC9000-75 delivers professional-grade cutting performance in a compact 30" format. An FC Series Cutting Plotter provides a higher level of productivity and greater ease of use than any other cutting plotter on the market today. Perfect for professional sign shops and print finishers who need reliable, high-quality cutting with advanced features.

Key Features

  • Professional 750mm (30") cutting width
  • Maximum cutting speed: 1485mm/s
  • Cutting force: Max 5.88N (600gf) - ideal for thick materials
  • Data Link Function (Barcode Reader) for automated workflows
  • Built-in cross-cutter function for sheet cutting
  • Networking capabilities (Ethernet & USB)
  • 3-year warranty with full UK support

What's Included in the Box

  • Matching stand with lockable castor wheels
  • Media catch baskets (front & rear)
  • Rear mounted media stocker
  • CB09UB 0.9mm Supersteel blade
  • PHP33-CB09N-HS blade holder
  • Fibre tip pen holder & pen
  • 2.9m USB cable & power cable
  • Software: Graphtec Studio 2 & Cutting Master 4

Perfect Applications

The FC9000 is perfect for:

  • Sign vinyl cutting
  • Window signage & decals
  • Heat transfer apparel
  • Paint protection film (PPF)
  • High intensity reflective vinyl
  • Magnetic materials
  • Sandblast rubber stencil
Specifications

FC9000-75 Complete Specifications

Configuration & Drive

  • Configuration: Grit rolling type
  • Drive Method: Digital servo drive

Cutting Capabilities

  • Max. cutting area: 762mm x 50m
  • Cutting area of guaranteed accuracy: 742mm x 15m
  • Maximum cross-cut width: 762mm
  • Max. cutting speed: 1485 mm/s at 45° direction
  • Axial acceleration: Max. 39.2m/s² at 45° direction
  • Cutting Force: Max. 5.88N (600gf)

Precision & Accuracy

  • Minimum character size: Approx. 5mm alphanumeric (varies depending on character font and media)
  • Mechanical resolution: 0.005mm
  • Programmable resolution: GP-GL: 0.1/0.05/0.025/0.01mm, HP-GL: 0.025mm
  • Repeatability: Max. 0.1mm in plot up to 2m (excluding media expansion and contraction)

Media Handling

  • Mountable media width: Min. 50mm, Max. 920mm (36.2 inch)
  • Mountable roll media diameter: 76 to 200mm (160mm with optional paper flange OPH-A21)
  • Mountable roll media mass: 12kg
  • Compatible take-up roll: Not available
  • Number of push rollers: 2 rollers

Tools & Media Types

  • Mountable number of tools: 1 tool (mountable 2 tools with option)
  • Blade types: Supersteel
  • Pen types: Oil-based ballpoint pen, Water-based fiber-tip pen
  • Media types: Thickness 0.25mm or less - Marking film (PVC film/fluorescence/reflective), Polyester film (on condition), High Intensity reflective film (Diamond grade, Engineer grade)

Display & Interface

  • Display: Graphic type LCD with backlight (240 dots x 128 dots), supports 10 languages
  • Interface: USB 2.0 (Full Speed), Ethernet 10BASE-T/100BASE-TX
  • Buffer memory: 2MB
  • Command sets: GP-GL / HP-GL (Set by command or auto-detect)

Software Compatibility

  • Compatible OS: Windows 10/8.1/7, Mac OS X 10.6 ~ 10.11 / macOS 10.12 ~ 10.14 (Graphtec Studio: 10.6 - 10.14, Cutting Master 4: 10.7 - 10.14)
  • Supported software: Graphtec Pro Studio (Windows), Graphtec Studio (Mac), Cutting Master 4, Windows Driver

Power & Environment

  • Power source: 100V to 240V AC, 50/60 Hz
  • Power consumption: Max. 120W
  • Operating environment: 10 to 35°C, 35 to 75% R.H. (non-condensing)
  • Guaranteed accuracy environment: 16 to 32°C, 35 to 70% R.H. (non-condensing)

Physical Specifications

  • External dimensions (W x D x H): Approx. 1360 x 1151 x 1232mm
  • Weight: Approx. 49kg

Safety & Compliance

  • Safety: PSE, UL/cUL, CE mark
  • EMC: VCCI Class A, FCC Class A, CE mark
